TITAN side wall semi trailers are fabricated from high-strength steel using automated submerged arc welding (SAW) technology.The railing is welded automatically, which is more beautiful and strong. There is no seam in the welded part of the main beam to ensure that the steel structure will not be damaged under harsh road conditions.
Side wall semi trailer is mainly used to transport large cargo, building materials, furniture, and some light-throwing cargo that can withstand large volume and weight. They are particularly suitable for transporting large items and are easier to load and unload with a crane when there are no barriers blocking the boom.
For Big Sale in Mali: Side Wall Semi Trailer with 2-axle
For Big Sale in Mali: Side Wall Semi Trailer with 2-axle
For Big Sale in Mali: Side Wall Semi Trailer with 2-axle
For Big Sale in Mali: Side Wall Semi Trailer with 2-axle
For Big Sale in Mali: Side Wall Semi Trailer with 2-axle
For Big Sale in Mali: Side Wall Semi Trailer with 2-axle
Overall dimension(L*W*H): 12500 mm x 2500 mm x 3200 mm
Material: high strength steel
Maximum loading capacity: 60 tons
Bottom plate: 3mm thick rhomboid plate
Axle: 2 axles, 13 tons TITAN axle
Braking system: 16 tons braking pad, the WABCO brand braking system

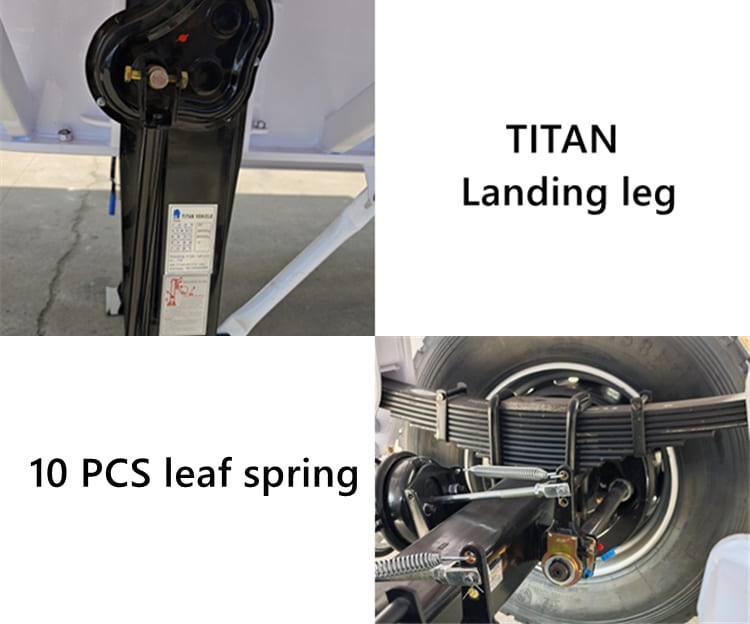

Landing leg: TITAN landing leg, 28 tons
Leaf spring: 10 layer leaf spring
Suspension: heavy mechanical suspension
Tire: 12R22.5 tire
Accessories: LED light
Twist Lock: 12 units (Equipped according to requirements)

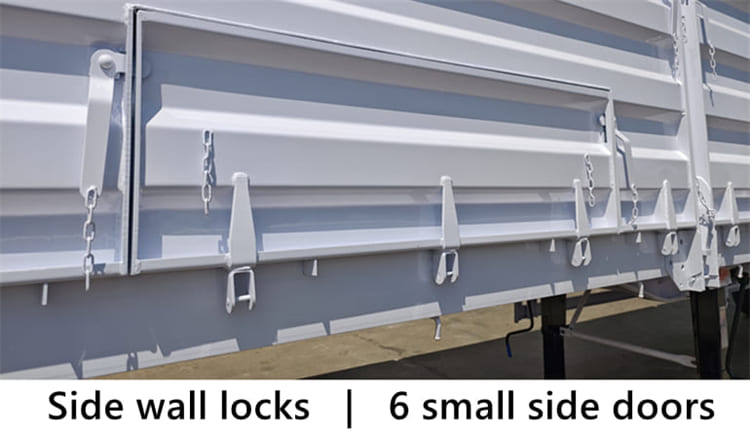

TITAN side wall semi trailers are fabricated from high-strength steel using automated submerged arc welding (SAW) technology. The side walls are constructed with thickened high-strength steel, allowing customization of height. Equipped with dual-side wall locks, the specially designed side doors feature six vertically aligned compartments. When opened, the compartment doors remain perpendicular to the ground, preventing cargo damage during loading. Anti-collision rubber is installed on the side walls to ensure no contact between the sides and the base plate.

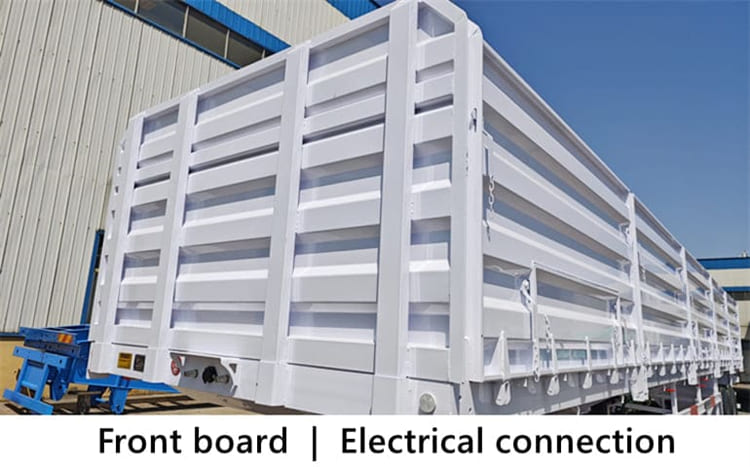

The fully enclosed front panel of the side wall trailer for sale in Mali features longitudinally inserted vertical rods reinforced with double-layer high-strength square tubes. All columns are equipped with cross braces which are removable. The thickened columns and connectors are fabricated from 8mm steel sheets through bending processes. Each column is designed with a 18cm width, and the base of each column is secured with bolts to prevent loosening.
TITAN trailer side wall is equipped with 3mm thick rhomboid plate on the bottom plate, which is thicker than other factories' side wall trailer. The traction plate of tihs 2 axle side wall trailer for sale in Mali is longer and thicker, which makes it more resistant to torsion.
TITAN side wall trailer uses 13-ton axle with 16-ton brake pads to ensure the trailer side wall has strong load capacity and good braking effect. TITAN provide the WABCO brand electronic control braking system which is a famous accessory brand in the world, the braking distance can be shortened by more than 5 meters. Triangle structure of the TITAN 28 tons support landing leg is a stable support.

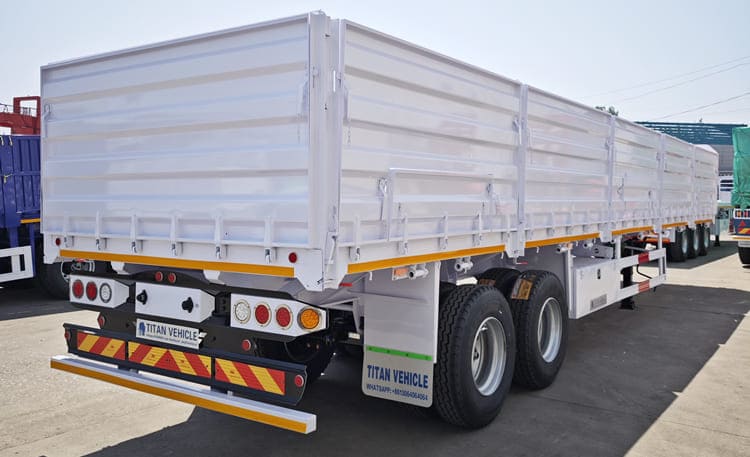

The TITAN trailer side wall's bumper is 4mm thick, which increases the anti-collision ability of the bumper. Spray powder paint has strong adhesion, bright color, and will not peel off after 5 years of use.TITAN uses the strengthened suspension system to the 2 axle side wall semi trailer for sale in Mali , the front and rear of the suspension system of TITAN trailer side wall has been strengthened. The axle, body size, unloading configuration, tires and so on can be customized.
TITAN offers professional transportation services, such as container transportation, bulk transportation, etc. Before the bulk cargo transportation, wax will be sprayed on the side wall trailer and covered the trailer side wall with tarpaulin to ensure that the transportation process is not affected by seawater corrosion, which is provided to customers free of charge. Load tests are performed prior to shipment.
