Low loader semi trailer for sale in Mali with 2 lines 4 axles can load higher duty equipment and cargoes. This semi trailer low loader's tires are exposed to reduce the center of gravity of the low loader semi trailer greatly when it is loading cargoes. The cargo platform height is usually controlled at 0.8-1.2 meters, which greatly reduces the center of gravity of the cargo and improves driving stability. This semi trailer low loader is especially suitable for transporting tall equipment such as wind turbine blades and construction machinery.
This 2 line 4axles exposed tires low loader semi trailer's dimension is 13000 mm x 3000 mm x 1700 mm(L x W x H). This 1700 mm dimension represents the height from the top of the low loader's neck to the ground. The platform's height is between 800 mm and 1200 mm. It can be customized according to your request, the situations of your area, and the provided regulation to custom made.

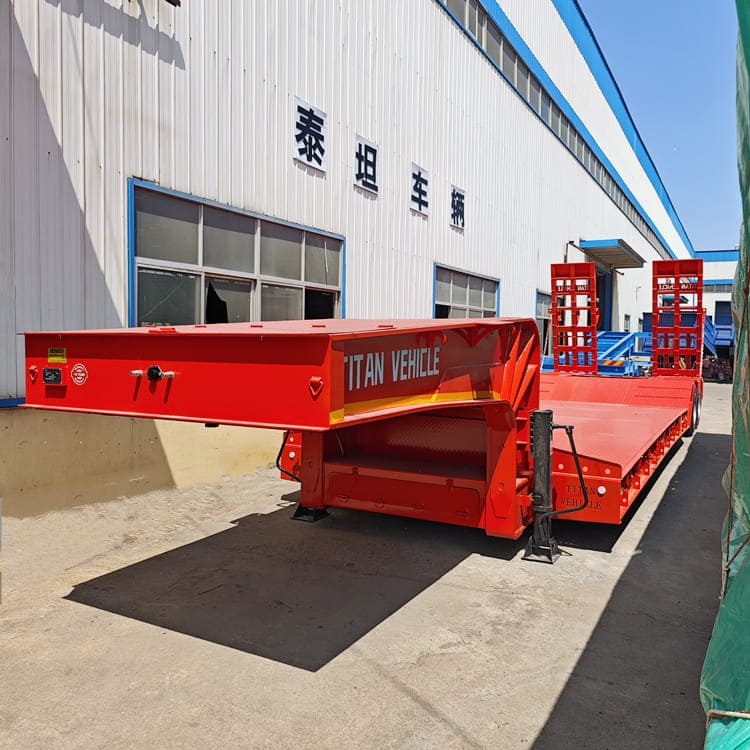

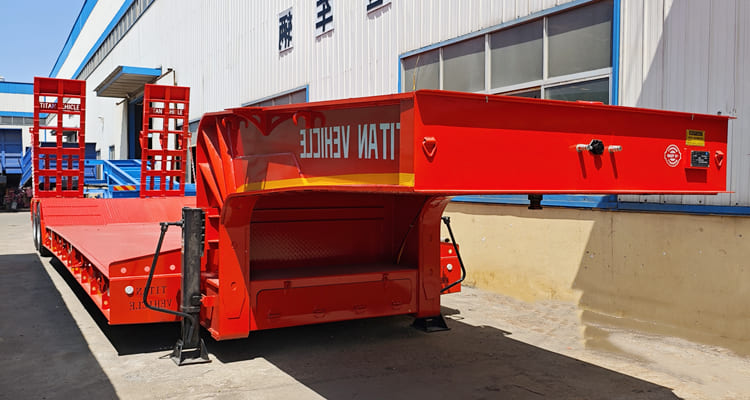

Exposed Tires-Low Loader Semi Trailer for Sale in Mali
Exposed Tires-Low Loader Semi Trailer for Sale in Mali
Exposed Tires-Low Loader Semi Trailer for Sale in Mali
Exposed Tires-Low Loader Semi Trailer for Sale in Mali
Exposed Tires-Low Loader Semi Trailer for Sale in Mali
Exposed Tires-Low Loader Semi Trailer for Sale in Mali
Low loader type: 2 lines 4 axles exposed tire low loader
Steel material: HG60 and T700 steel
Main beam: composed by the upper plate, web plate, lower plate

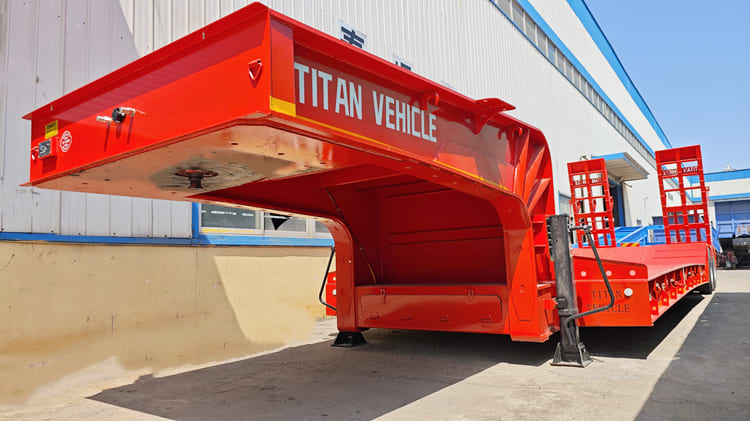

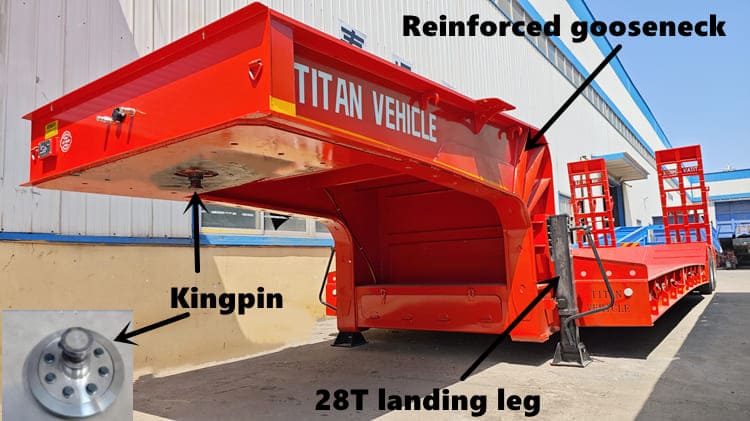

Goose neck: reinforced goose neck
Side beam: "H" shape design
Spare tire carrier: one set spare tire carrier

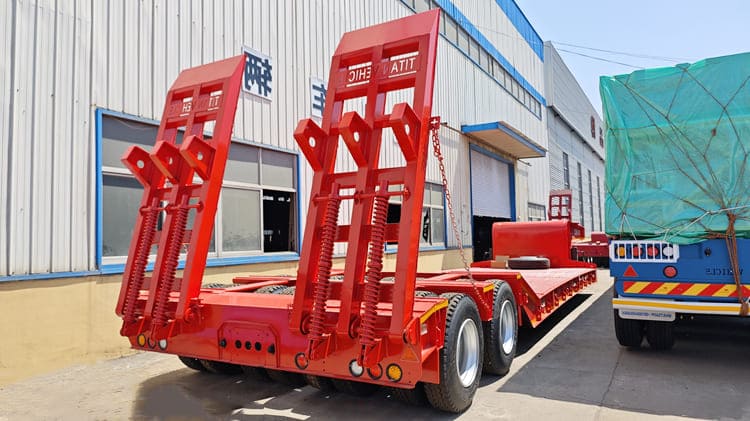

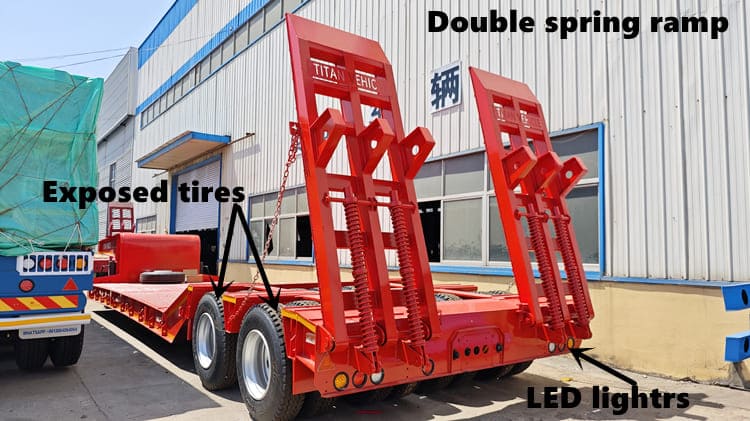

Ramp: double spring high strength ramp

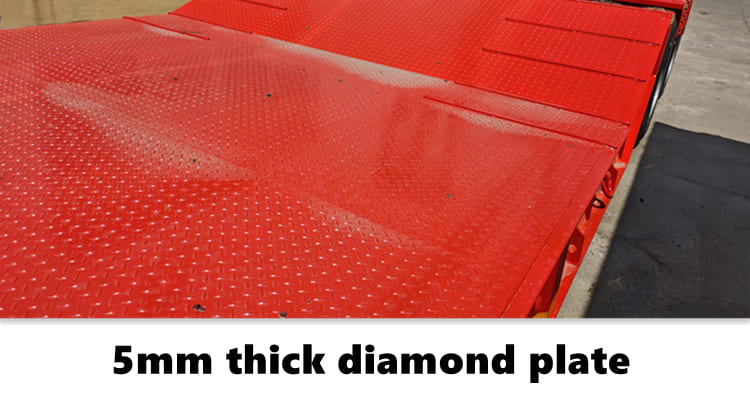

Floor plate: 5 mm diamond plate
Suspension system: reinforced suspension
Pin: 70 mm reinforced center balance pin
Landing leg: JOST brand landing legs, 28 tons
Light: LED lights
Tool box: one set tool box
This low loader semi trailer for sale in Mali is of excellent quality and are competitively priced. TITAN uses the HG60 alloy steel to make the main beam, goose neck, cross beam, side support frame of the low loader semi trailer for sale in Mali. And the side beam of the semi trailer low loader is made by T700 alloy steel with "H" shaped design. The side support is also "H" shaped design. This structure makes the low loader semi trailer for sale in Mali more robust and less prone to deformation.
2 lines 4 axles low loader semi trailer for sale in Mali uses multi-axle design disperses load and extends tire life. TITAN uses the double springs to make the ramp of the low loader semi trailer for sale in Mali. Double spring assists to reduce labor burden and increase the retract and extend efficiency. And the ramp is also made by HG60 alloy steel. So it has a strong bearing capacity, effectively ensuring that the weight of excavators or other heavy equipment can pass through the spring ramp without deformation or damage.
Tire embedded design-the "exposed tire" structure embeds the wheel halfway into the frame, which not only reduces the height of the semi trailer low loader, but also prevents the tire from protruding outward and occupying the cargo platform space, making the cargo platform completely flat without interference, and maximizing the use of the loading area. The low center of gravity reduces the risk of rolling when cornering, and has fewer restrictions when passing through bridges and tunnels. Exposed tire low loader semi trailer ultra-low platform allows loading of higher cargo.
TITAN offer container shipments and bulk shipments, you can choose the shipment way according to your need. We also can customize a delivery plan for you.
We use a dual waterproof and corrosion resistant waterproof solution. TITAN low loader semi trailer for sale in Mali uses anti-corrosion painting. And we will wrap the semi trailer low loader with waterproof to protect the low loader trailer.
