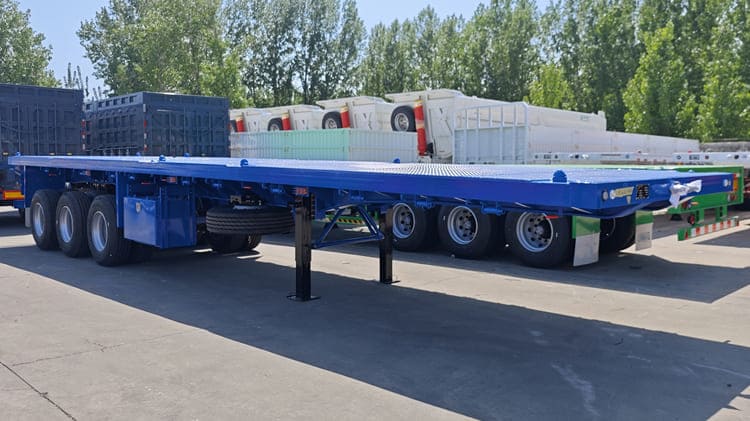

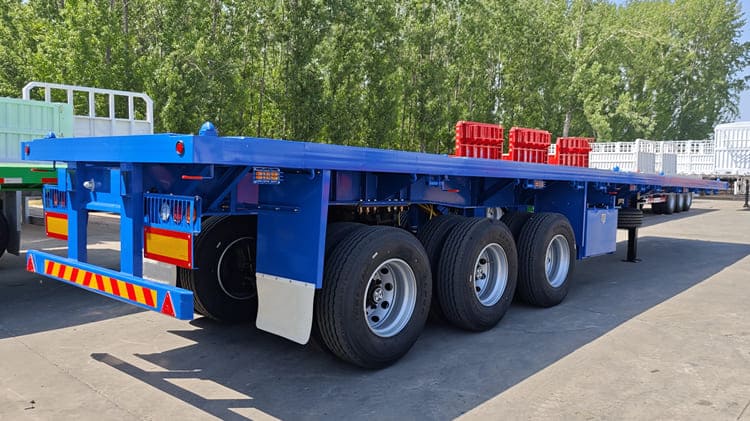

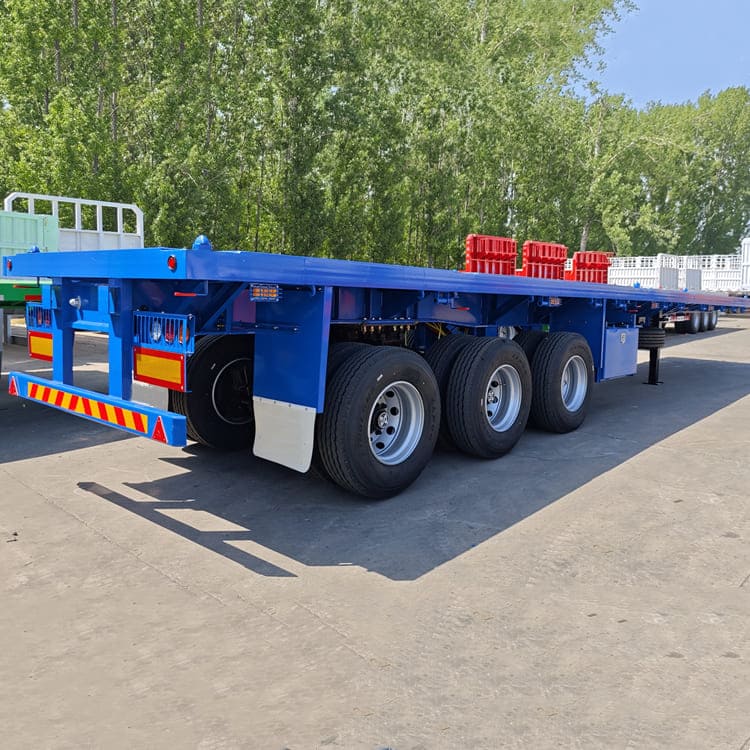

Flatbed tractor trailer are designed for transporting various goods and are widely used in ports, mining areas and construction sites. With open cargo space, flatbed trailer easily realize the convenient transfer of large equipment and other goods.
The bearing platform is made of military grade high strength alloy steel with a yield strength of over 600MPa and a single axle bearing capacity exceeding 15 tons. Through cross welding of multiple groups of reinforced beams and longitudinal beams, a honeycomb shaped load bearing structure is formed.
Even when transporting 20 foot standard containers with stacked goods, the flatbed trailer body can remain stable without deformation. Tested by a third - party testing agency, the flatbed trailer's static load - bearing test can reach 120% of the design load, and the load stability on bumpy roads during dynamic driving tests is 20% better than industry standards.
Flatbed Tractor Trailer for Sale in Mali
Flatbed Tractor Trailer for Sale in Mali
Flatbed Tractor Trailer for Sale in Mali
Flatbed Tractor Trailer for Sale in Mali
Flatbed Tractor Trailer for Sale in Mali
Flatbed Tractor Trailer for Sale in Mali

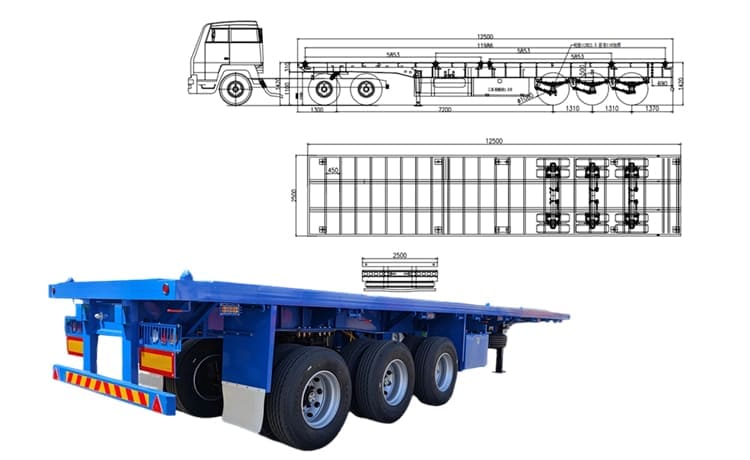

Dimension(mm): 12500x2500x1460mm
Loading capacity(ton): ≤60T
Axles: 3 axles

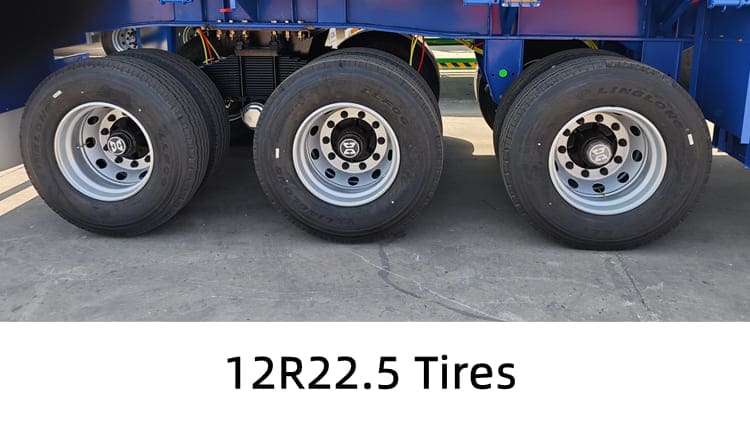

Tire: 12 units, 12R22.5

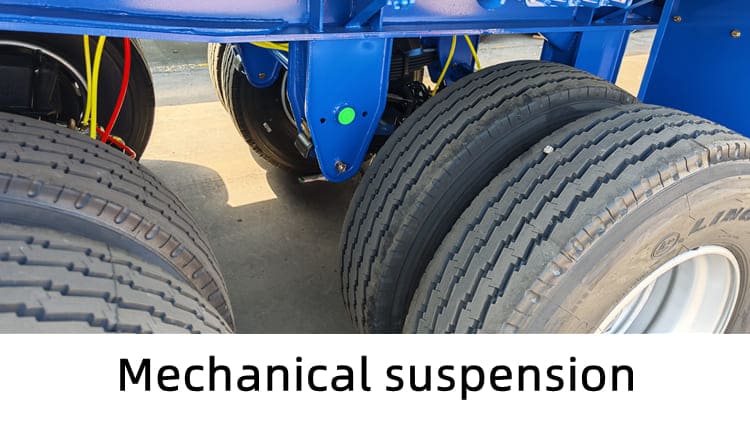

Suspension: Mechanical suspension
Landing gear: JOST
Brake system: WABCO
Flatbed Tractor Trailer for Sale in Mali

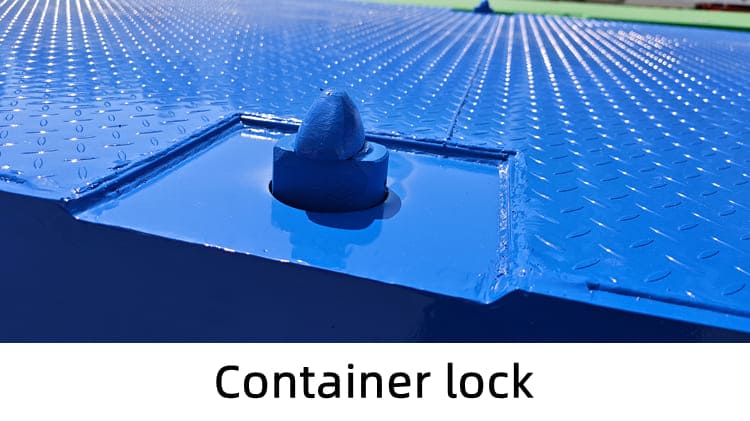

The edge of the flatbed is equipped with high density anti - slip diamond steel plates, increasing the friction coefficient by 40%. With movable positioning locks (2 sets of standard lock holes per meter), flatbed tractor trailer can quickly fix goods of different sizes. For transporting extra - long goods, detachable extension ramps can be added, extending up to 1.5 times the original length.
The flatbed trailer frame is made by integral welding technology, with the main longitudinal beam adopting a U - shaped cross section design, a cross section height of 300mm, a web thickness of 8mm, and connected by 16 through beams to form a rigid frame. Key welds are welded by robot automatic welding, with a weld leg height of 6mm. No false welding defects are found through X - ray flaw detection, and the flatbed trailer frame service life can reach 15 years / 300,000 kilometers.
The flatbed tractor trailer for sale in Mali is divided into three independent units: the bearing module, the transmission module and the control module, with standardized interfaces between each module. This design reduces the time for repairing and replacing parts by 50% and facilitates the addition of functional components such as hydraulic tailboards and side railings according to customer needs.
The flatbed tractor trailer frame surface is treated with shot blasting for rust removal, then sprayed with double layer epoxy primer and the salt spray test can reach 1000 hours without rust. After the primer cures, an aliphatic polyurethane topcoat is applied. This topcoat not only offers excellent weather resistance and gloss retention, but also resists UV rays, heat, and chemical corrosion.
This double coating creates a tight protective barrier, preventing blistering or peeling, and keeping rust coverage to less than 5%. This makes the flatbed tractor trailer fully resistant to Mali's harsh transportation environment of high temperature, high humidity, and frequent dust, significantly extending the flatbed tractor trailer frame's service life.
LED warning light strips are installed on both sides of the flatbed tractor trailer for sale in Mali, with a visibility range of up to 300 meters in low light conditions. The tires are all-steel radial run-flat tires with a tread depth of 18mm, which improves grip by 30% on complex road conditions such as gravel and mud.
Before shipment, the flatbed tractor trailer is fully protected: First, the entire flatbed trailer is cleaned with a high-pressure water gun to remove surface oil and impurities; key metal parts are sprayed with a special rust inhibitor, and exposed joints are sealed with waterproof sealant; tires are inflated to 1.2 times the standard pressure and fitted with protective sleeves.
During loading, the flatbed tractor trailer body is secured using a four-point rigid mounting system, with high-strength chains with a pulling force of 5 tons per point and spiral tensioners. The inner wall of the container is covered with shock-absorbing cushioning cotton, and the gap between the vehicle body and the container is filled with foam cushioning material.
